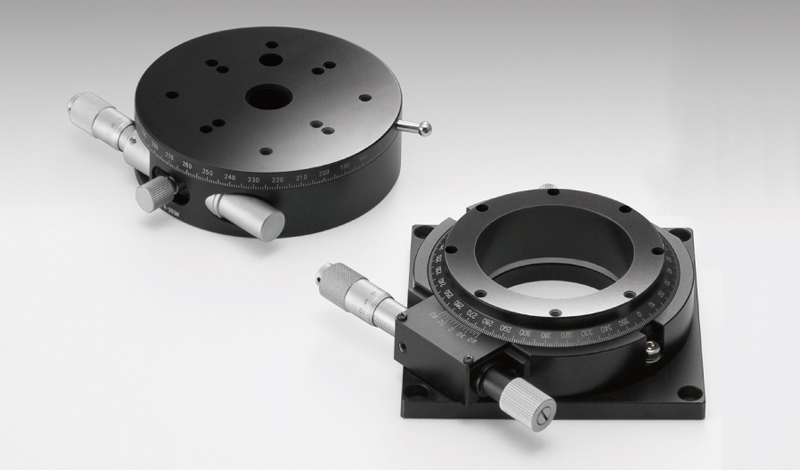

Stoliki obrotowe
GOHT-A-S
Goniometry mikrometryczne z łożyskiem precyzyjnym ze stali EXC™ 1-osiowe
Materiał: Stal
Łożysko: EXC precyzyjne

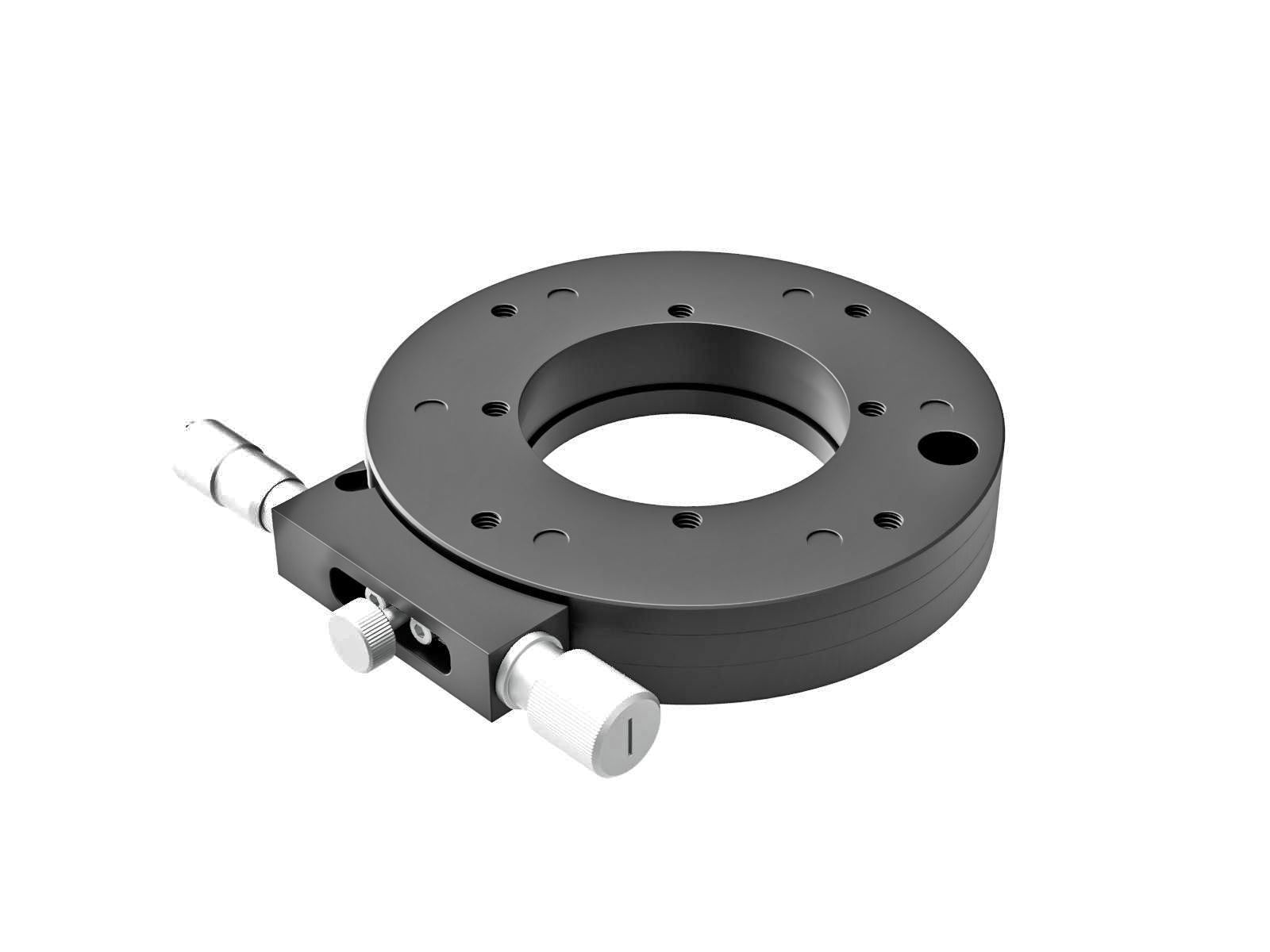

KSPB-1206MH
Stolik obrotowy z łożyskiem krzyżowym, średnica 120mm, mosiężny, 360° ręczny obrót, +/-4° precyzyjna regulacja, napęd mikrometryczny, gwinty M4
Name: 120mm Diameter, Brass, Crossed-Roller Bearing Rotation Stage, 360 Deg Manual Rotation, +/-4 Deg Fine Adjustment, Micrometer Drive, M4 Threads
Weight: 1.1000kgs
Guide: The part number suffix FMost stages can be directly mounted to corresponding sized linear stages for multiple axis adjustments.Adapter plates are available for mounting other size stages and accessories.FP indicates products with fine-pitch screws instead of standard micrometers.Fine Pitch screws have a screw pitch of 0.25mm and require a hex wrench or the optional hex wrench with knob (KCL) for adjustment.(WEB Reference Catalog Code/W8008-3)

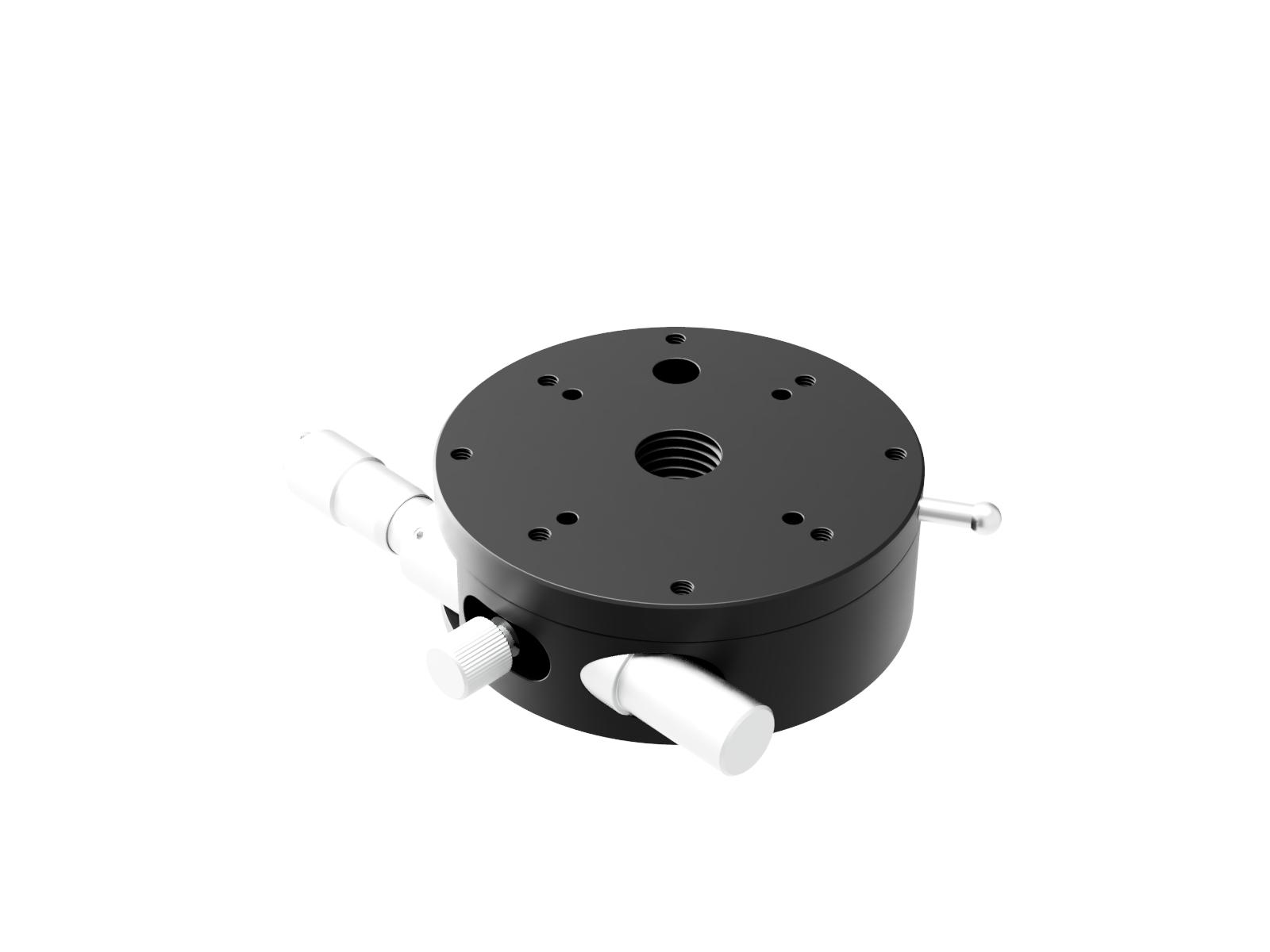

KSPA-806M
Stolik obrotowy z łożyskiem szlifowanym, średnica 80mm, aluminiowy, 360° ręczny obrót, +/-5° precyzyjna regulacja, napęd mikrometryczny, gwinty M4
Name: 80mm Diameter, Aluminum, Lapped-Surface Bearing Rotation Stage, 360 Deg Manual Rotation, +/-5 Deg Fine Adjustment, Micrometer Drive, M4 Threads
Weight: 0.5000kgs
Guide: Most stages can be directly mounted to corresponding sized linear stages for multiple axis adjustments.Using the top plate for KSP/KSPA (SP-103) to convert mounting holes, various stages can be mounted. (WEB Reference Catalog Code/W6059)Mounting holes can be converted using the bottom plate for KSPA-806M/1006M (SP-117). (WEB Reference Catalog Code/W6063)The part number suffix FP indicates products with fine-pitch screws instead of standard micrometers.Fine Pitch screws have a screw pitch of 0.25mm and require a hex wrench or the optional hex wrench with knob (KCL) for adjustment.(WEB Reference Catalog Code/W8008-3）

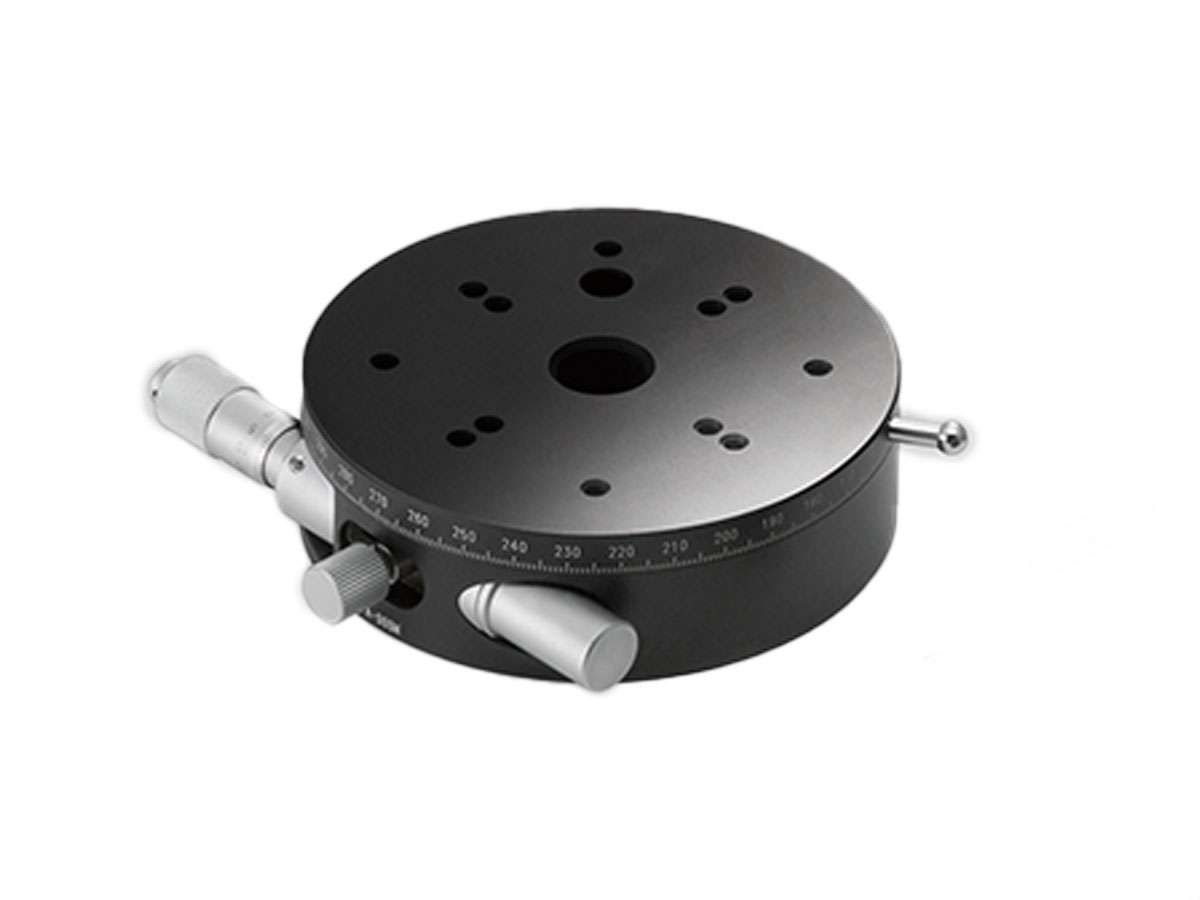

KSPA-986M
Stolik obrotowy z łożyskiem szlifowanym, średnica 98mm, aluminiowy, 360° ręczny obrót, +/-5° precyzyjna regulacja, napęd mikrometryczny, gwinty M4
Name: 98mm Diameter, Aluminum, Lapped-Surface Bearing Rotation Stage, 360 Deg Manual Rotation, +/-5 Deg Fine Adjustment, Micrometer Drive, M4 Threads
Weight: 0.7000kgs
Guide: Most stages can be directly mounted to corresponding sized linear stages for multiple axis adjustments.Using the top plate for KSP/KSPA (SP-103) to convert mounting holes, various stages can be mounted. (WEB Reference Catalog Code/W6059)Mounting holes can be converted using the bottom plate for KSPA-806M/1006M (SP-117). (WEB Reference Catalog Code/W6063)The part number suffix FP indicates products with fine-pitch screws instead of standard micrometers.Fine Pitch screws have a screw pitch of 0.25mm and require a hex wrench or the optional hex wrench with knob (KCL) for adjustment.(WEB Reference Catalog Code/W8008-3）

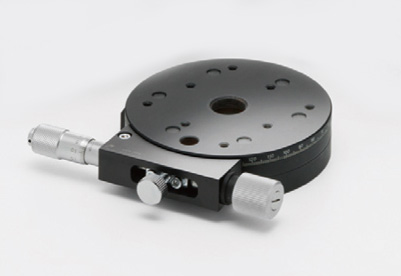

KSPB-906M
Stolik obrotowy z łożyskiem krzyżowym, średnica 90mm, mosiężny, 360° ręczny obrót, +/-5° precyzyjna regulacja, napęd mikrometryczny, gwinty M4
Name: 90mm Diameter, Brass, Crossed-Roller Bearing Rotation Stage, 360 Deg Manual Rotation, +/-5 Deg Fine Adjustment, Micrometer Drive, M4 Threads
Weight: 1.3000kgs
Guide: The part number suffix FMost stages can be directly mounted to corresponding sized linear stages for multiple axis adjustments.Adapter plates are available for mounting other size stages and accessories.FP indicates products with fine-pitch screws instead of standard micrometers.Fine Pitch screws have a screw pitch of 0.25mm and require a hex wrench or the optional hex wrench with knob (KCL) for adjustment.(WEB Reference Catalog Code/W8008-3)
KSC-606
Stolik obrotowy z łożyskiem szlifowanym, średnica 60mm, aluminiowy, 360° ręczny obrót, napęd ręczny, gwinty M4
Name: 60mm Diameter, Aluminum, Lapped-Surface Bearing Rotation Stage, 360 Deg Manual Rotation, Manual Drive, M4 Threads
Weight: 0.1900kgs
Guide: -

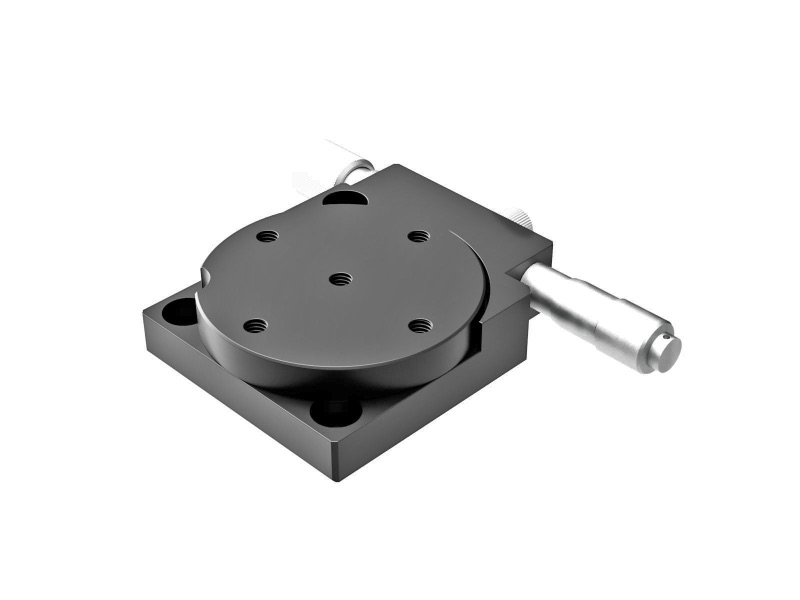

KSP-656M-M6
Stolik obrotowy z łożyskiem szlifowanym, średnica 65mm, mosiężny, 360° ręczny obrót, +/-5° precyzyjna regulacja, napęd mikrometryczny, gwinty M6
Name: 65mm Diameter, Brass, Lapped-Surface Bearing Rotation Stage, 360 Deg Manual Rotation, +/-5 Deg Fine Adjustment, Micrometer Drive, M6 Threads
Weight: 0.7000kgs
Guide: Most stages can be directly mounted to corresponding sized linear stages for multiple axis adjustments.Using the top plate for KSP-406 (SP-123)(WEB Reference Catalog Code/W6068) to convert mounting holes, various stages can be mounted.Using the top plate for KSP/KSPA (SP-103)(WEB Reference Catalog Code/W6059) to convert mounting holes, various stages can be mounted.Using the bottom plate for KSP-786M (SP-104))(WEB Reference Catalog Code/W6059) to convert mounting holes, mounting on magnet bases or 60 × 60mm stages (M4 50×50) is possible.Fine Pitch screws have a screw pitch of 0.25mm and require a hex wrench or the optional hex wrench with knob (KCL) for adjustment.(WEB Reference Catalog Code/W8008-3）
